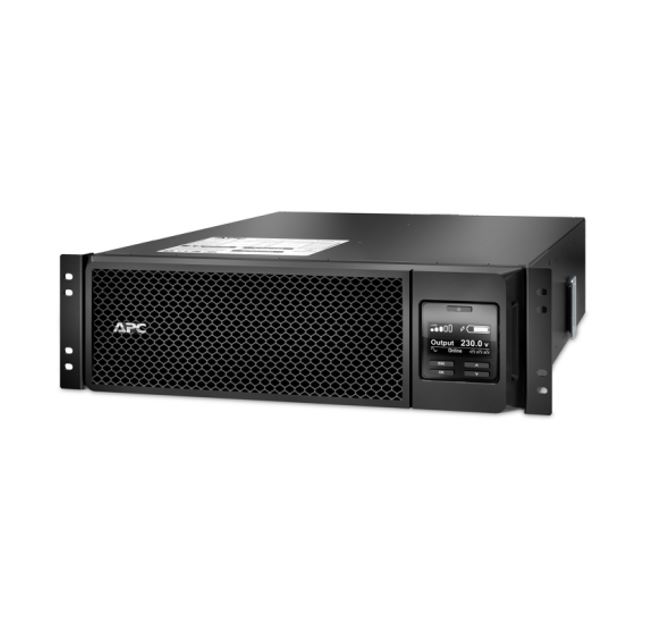

APC Smart-UPS 5000VA/4500W Online UPS, 3U Rackmount, 230V/HW Input, 4x IEC C19 & 6x IEC C13 Outlets, Lead Acid Battery, Network & Smart Slot, W/ Rail

Description

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 4500 W
Rated power in VA 5000 VA
Output connection type 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Number of rack unit 3U
Provided equipment- Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, Warranty card, Web/SNMP management card
Network frequency 40…70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Input voltage limits 100…275 V adjustable (half load)
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 931 Btu/h
IP degree of protection IP20

Mounting mode- Rack mounted
Replacement Battery -APCRBC140
Compatible Batteries- SRT192RMB
Compatible Wireless Communication Adapter-AP9834
